Container Lashing System for Cargo Restraint and Unloading Safety
Pre-assembled container lashing systems designed to prevent cargo shifting and improve unloading safety during global transportation.

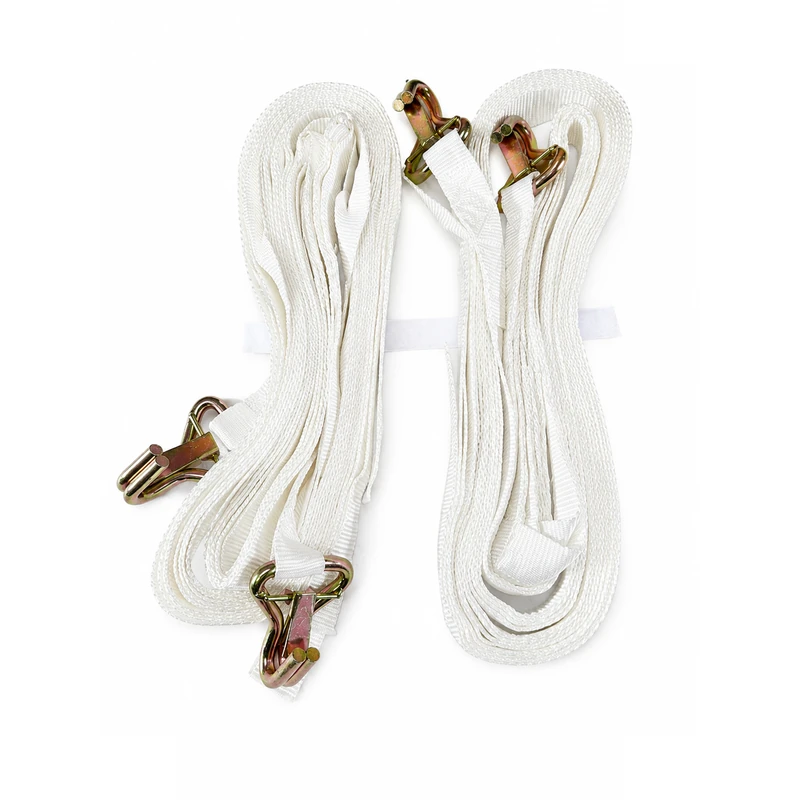

- Pre-Assembled Cargo Restraint System
Ready-to-install design with polyester webbing, buckles and hooks for faster container loading operations.
- Prevent Cargo Collapse at Container Doors
Creates a strong restraint barrier to reduce cargo movement and improve unloading safety.
- Flexible 2/3/4 Cross Belt Configurations
Available in fixed and movable designs to suit different cargo types and loading conditions.
- Suitable for GP & High Cube Containers
Designed for 20ft, 40ft and 40HQ container applications with adjustable belt lengths.
- Lightweight Alternative to Timber Bracing
Reduces installation time, handling effort and material waste compared with traditional wood blocking.
Container Lashing System Description

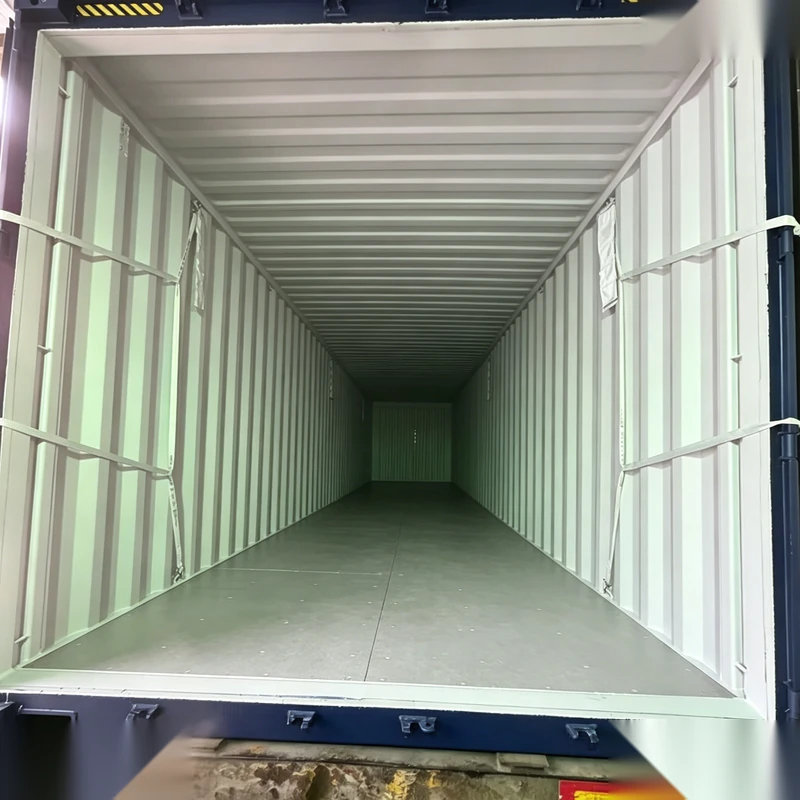

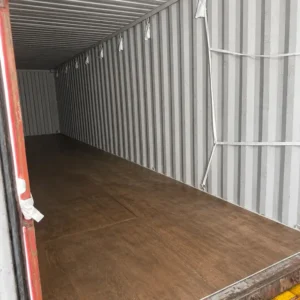

Container lashing systems are designed to provide a secure restraint barrier at container doors, helping improve unloading safety when containers are opened after long-distance transportation.
Manufactured with polyester webbing, steel safety hooks and adjustable components, the system provides reliable restraint for palletized cargo, cartons, drums, big bags and industrial products during ocean, rail and road transportation.

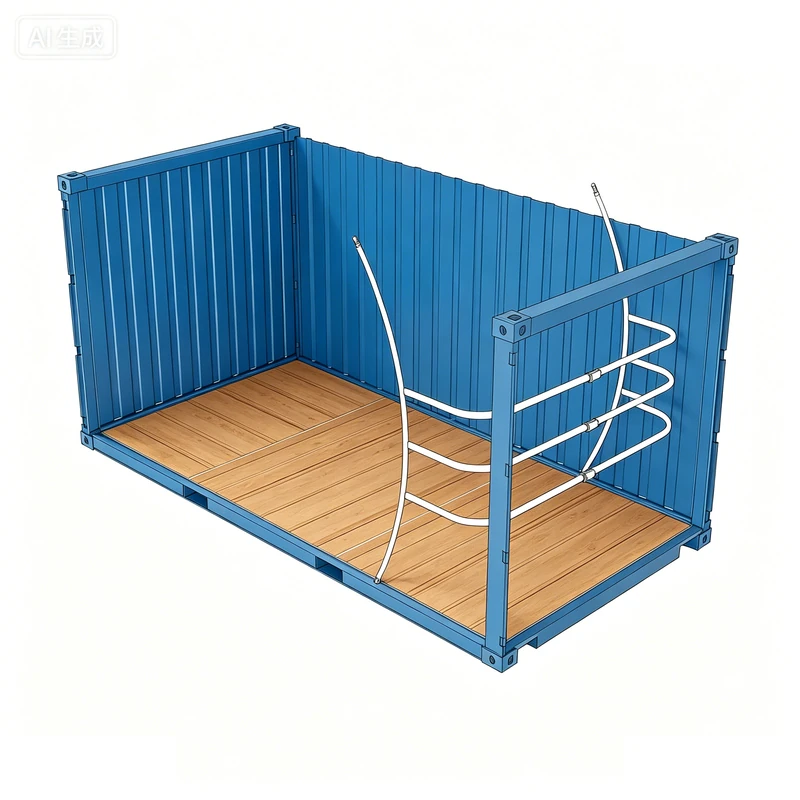

Available with 2, 3 or 4 horizontal cross belts in fixed or movable configurations, it can be adapted to different cargo types, loading conditions and container requirements.
Container Lashing System Technical Specifications
Standard Container Lashing Systems (20GP / 40GP)
Designed for 20ft and 40ft General Purpose (GP) containers.
| Model | Horizontal Belts | Configuration | Vertical Length | Horizontal Length | Webbing Width |
| CL-2F-GP | 2 | Fixed | 2400 mm | 3000 mm | 32 mm |
| CL-2M-GP | 2 | Movable | 2400 mm | 3000 mm | 32 mm |
| CL-3F-GP | 3 | Fixed | 2400 mm | 3000 mm | 32 mm |
| CL-3M-GP | 3 | Movable | 2400 mm | 3000 mm | 32 mm |
| CL-4F-GP | 4 | Fixed | 2400 mm | 3000 mm | 32 mm |
| CL-4M-GP | 4 | Movable | 2400 mm | 3000 mm | 32 mm |
High Cube Container Lashing Systems (40HQ)
Designed for 40ft High Cube (HQ) containers.
| Model | Horizontal Belts | Configuration | Vertical Length | Horizontal Length | Webbing Width |
| CL-2F-HQ | 2 | Fixed | 2600 mm | 3000 mm | 32 mm |
| CL-2M-HQ | 2 | Movable | 2600 mm | 3000 mm | 32 mm |
| CL-3F-HQ | 3 | Fixed | 2600 mm | 3000 mm | 32 mm |
| CL-3M-HQ | 3 | Movable | 2600 mm | 3000 mm | 32 mm |
| CL-4F-HQ | 4 | Fixed | 2600 mm | 3000 mm | 32 mm |
| CL-4M-HQ | 4 | Movable | 2600 mm | 3000 mm | 32 mm |
Configuration Options
Fixed Configuration
- Pre-positioned belts for standard cargo arrangements
- Faster installation during container loading
Movable Configuration
- Adjustable belt positions for flexible cargo layouts
- Suitable for different cargo sizes and loading conditions
| Component | Specification |
|---|---|
| Vertical & Horizontal Belts | Polyester woven webbing |
| Webbing Width | 32 mm standard |
| Belt Configuration | 2 / 3 / 4 horizontal belts |
| Installation Type | Fixed / Movable |
| Container Compatibility | 20GP / 40GP / 40HQ |

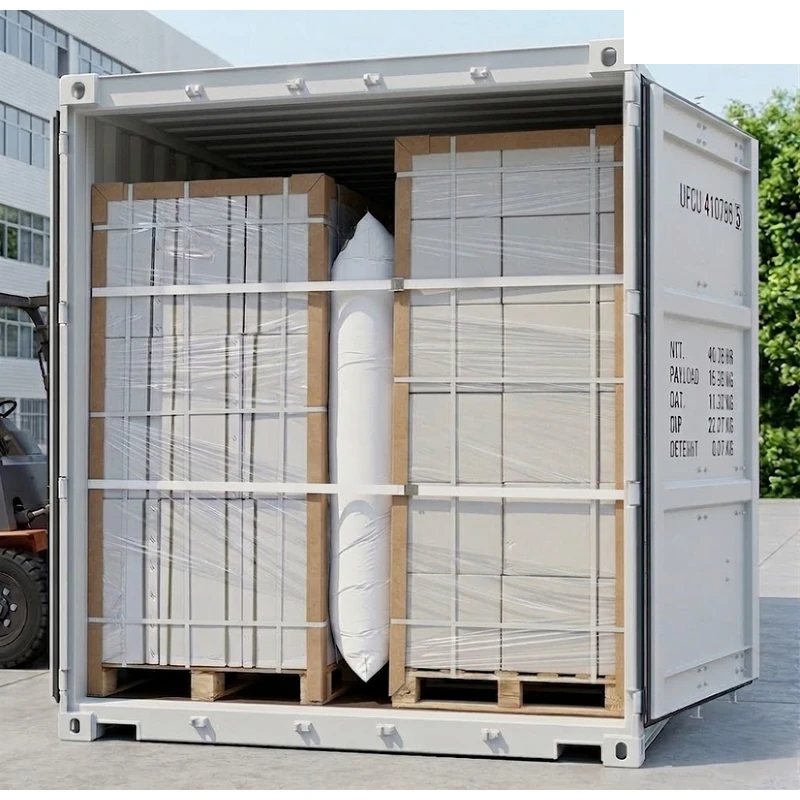

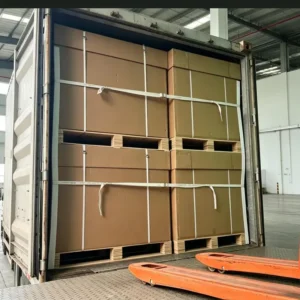

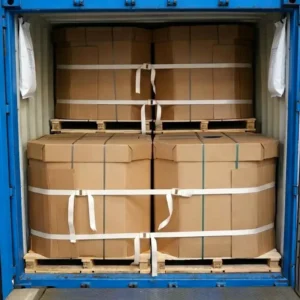

Container Lashing System Applications & Loading Cases
Container lashing systems provide reliable door-side cargo restraint solutions to improve unloading safety and prevent cargo collapse when container doors are opened.

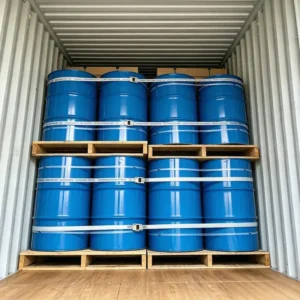

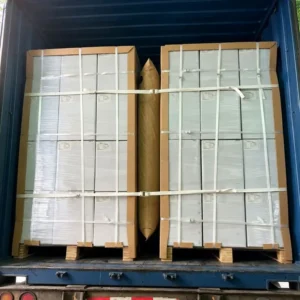

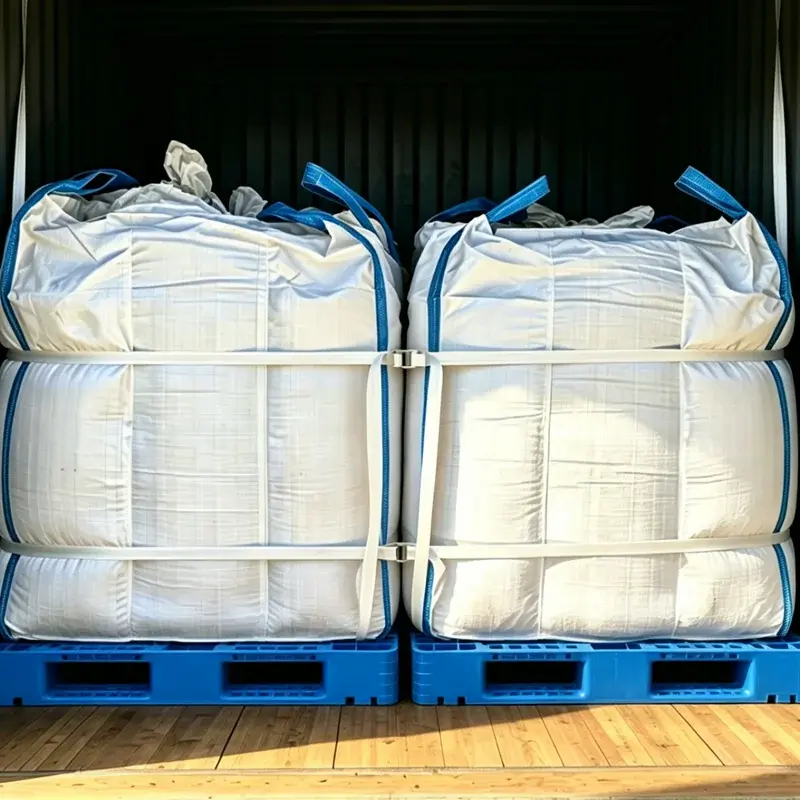

Designed for various container loading conditions, our container lashing systems help secure different types of cargo including palletized goods, drums, big bags, cartons, and industrial products during ocean transportation.
By creating a stable restraint barrier across container doors, the system helps reduce cargo movement caused by vibration, impact, and transportation forces, providing safer handling during loading, transit, and unloading operations.

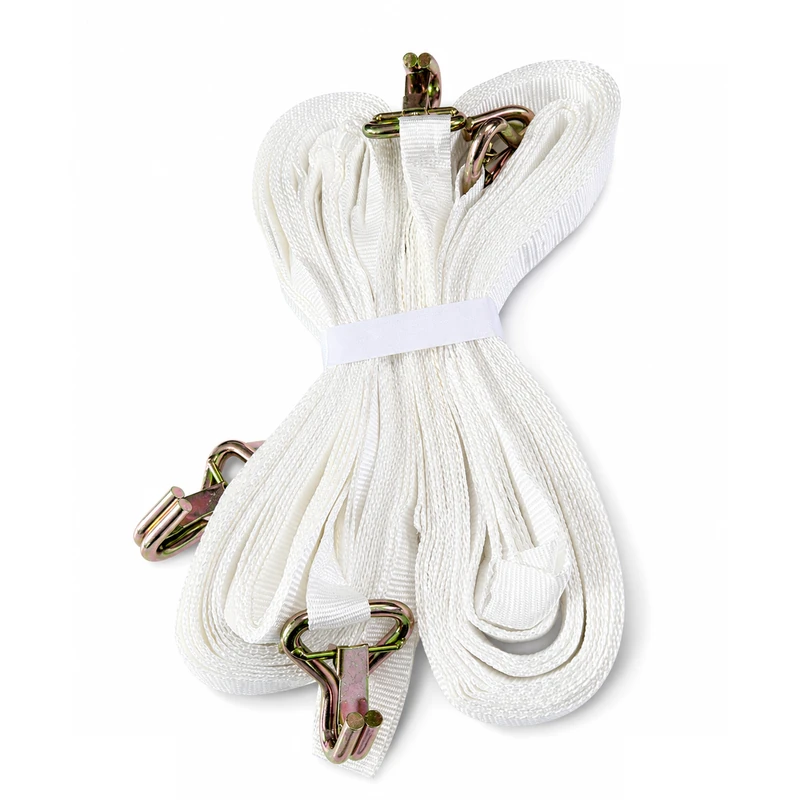

Container Lashing System Components
Reliable container door restraint depends on a properly matched system rather than individual components.
Each Container Lashing System combines polyester webbing, compatible hardware, and tensioning components to create a flexible restraint barrier across the container door opening.
Properly matched components ensure reliable system performance, efficient installation, and stable cargo restraint throughout transportation.
Vertical Lashing Belts
Vertical lashing belts provide the main supporting structure of the restraint system.
Available lengths are designed for standard containers and high cube containers, with customization available for specific loading requirements.
Horizontal Cross Belts
Horizontal cross belts connect the vertical belts and form a flexible barrier across the container door area.
Available configurations include:
• 2 Cross Belts
• 3 Cross Belts
• 4 Cross Belts
Lashing Metal Buckles
Heavy-duty lashing buckles provide reliable connections between webbing components and are selected according to different cargo restraint requirements.
Heavy-Duty Tensioners
Manual tensioners allow fast installation while maintaining consistent belt tension during transportation.
Lashing Hooks
Heavy-duty hooks connect the lashing system securely to existing container lashing points, allowing quick installation without permanent modification to the container.
System Advantages
- Faster Installation
- Flexible Cargo Adaptation
- Reduced Cargo Movement
- No Permanent Container Modification
- Improved Loading Efficiency
Get a Quote for Container Lashing Systems
Tell us your container type, cargo weight, and loading configuration. Our cargo securing specialists will recommend the most suitable container lashing system and provide a quotation within 24 hours.
