Kraft Paper Dunnage Air Bag For Container Cargo Stabilization
Cost-effective kraft paper dunnage air bags for cargo stabilization in container, truck, and rail transportation with reliable void filling performance.
- 13–40 KPa Pressure Grades

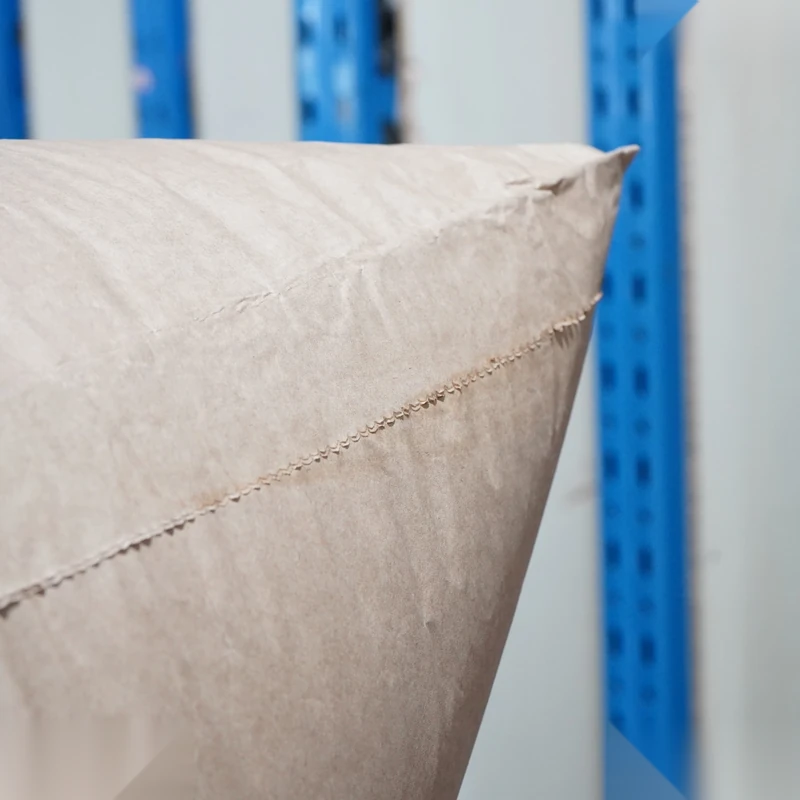

Available in different ply constructions for truck, export, and heavy industrial cargo. - Multi-Layer Kraft Paper Structure
Available in 1-ply, 2-ply, and 4-ply constructions for different cargo requirements. - Fast Inflation & Easy Installation
Reduces loading time without requiring complex equipment. - 60–120 cm Width Options
Available for different container and truck void spaces. - Standard & Turbo Valve Options
Flexible solutions for different loading efficiency requirements.

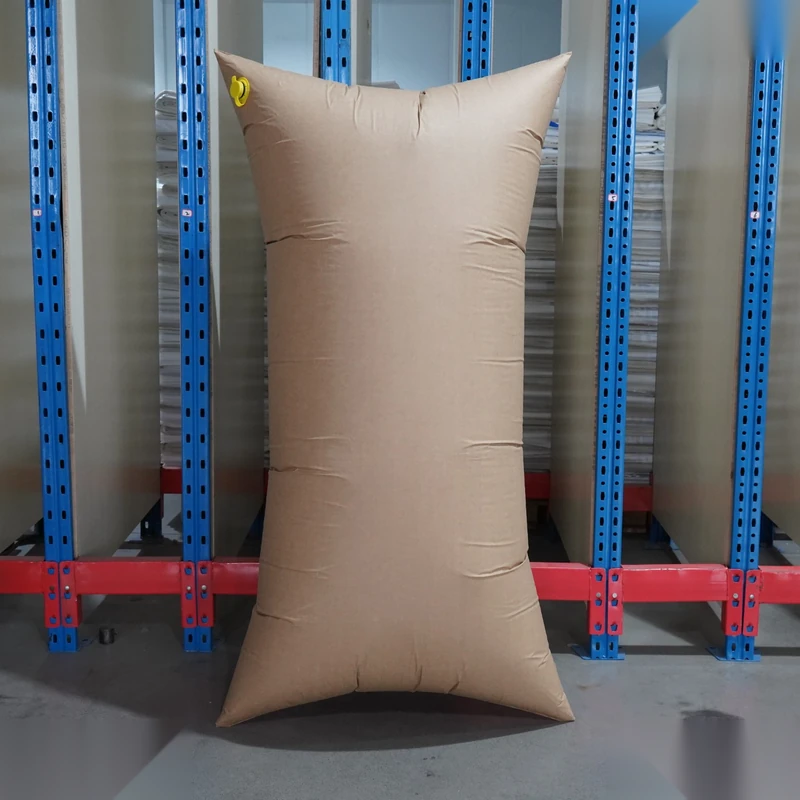

Kraft Paper Dunnage Air Bag Description
Kraft Paper Dunnage Air Bags are designed to fill empty spaces between cargo units and provide additional load support during transportation.

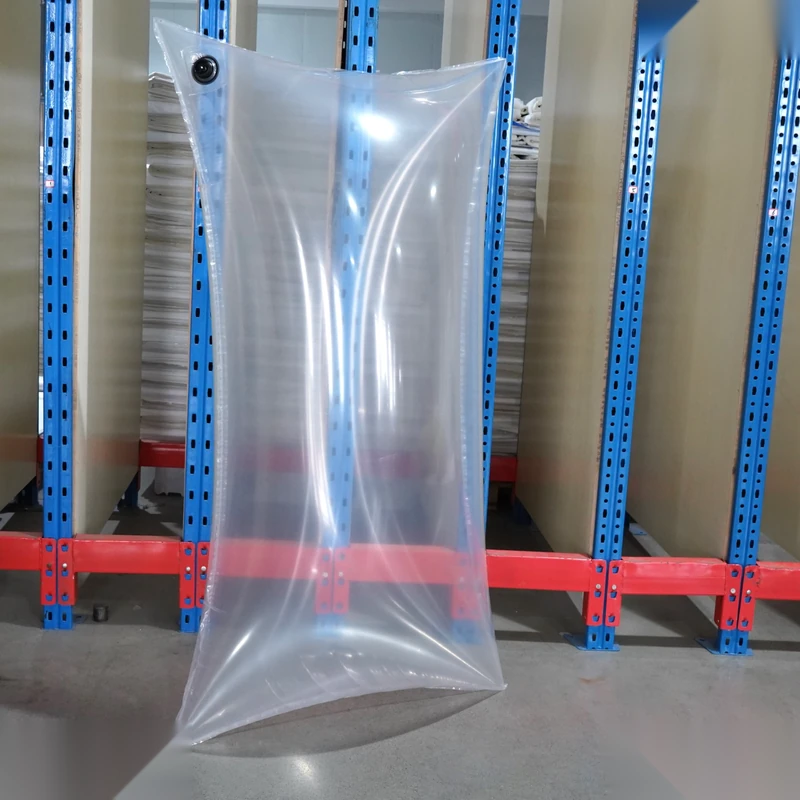

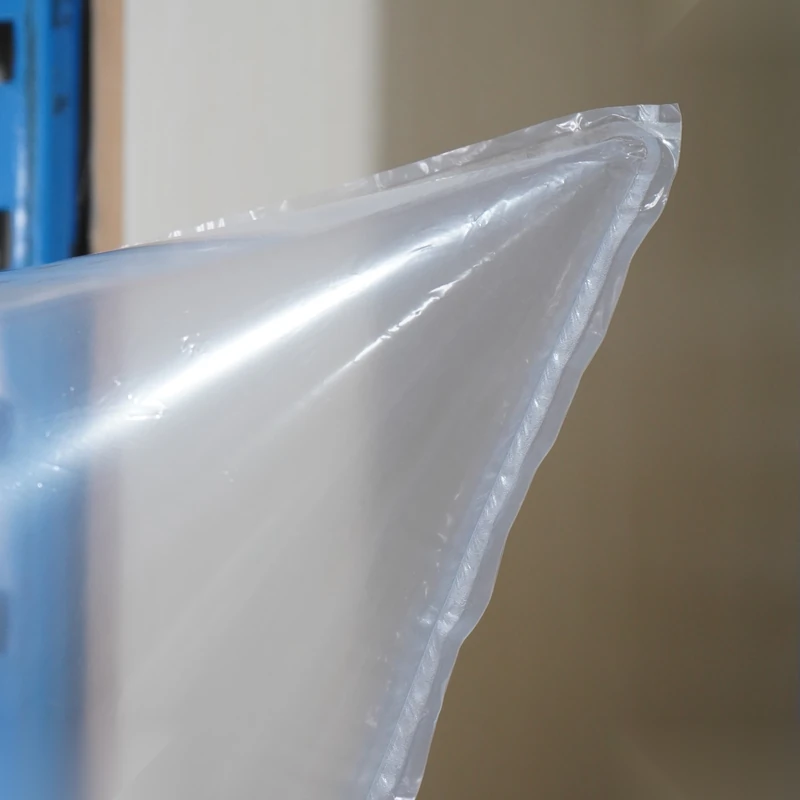

Constructed with multi-layer kraft paper and a durable PE inner bladder, they offer an economical solution for stabilizing cargo in container shipping, truck transportation, and rail freight.
Tensipack supplies different ply constructions, sizes, valve options, and customized packaging solutions for exporters, logistics providers, and cargo securing distributors worldwide.
Kraft Paper Dunnage Air Bag Specifications
| Grade / Construction | Recommended Filling Pressure | Material Construction | Primary Application |
|---|---|---|---|
| 1-Ply (Truck Grade) | 13 KPa / 0.13 Bar / 1.9 PSI | Single-Layer Kraft Paper Outer Bag + PE Inner Bladder | Cost-effective solution for truck transportation and light palletized cargo |
| 2-Ply (Standard Export) | 20 KPa / 0.20 Bar / 2.9 PSI | Premium Kraft Paper Outer Bag + PE Inner Bladder | Standard solution for container shipping and general export cargo |
| 4-Ply (Heavy Duty) | 40 KPa / 0.40 Bar / 5.8 PSI | Multi-Layer Kraft Paper Construction + PE Inner Bladder | Heavy industrial cargo, machinery, steel products, and rail transportation |
Void Space & Size Selection Guide
Selecting the correct air bag width is critical for safe cargo stabilization.
| Air Bag Width | Container Shipping | Truck Transport | Common Lengths Available |
| 60 cm / 24″ | Up to 25 cm / 10″ | Up to 20 cm / 8″ | 90 cm / 120 cm |
| 90 cm / 36″ | Up to 40 cm / 16″ | Up to 35 cm / 14″ | 120 cm / 180 cm / 210 cm |
| 120 cm / 48″ | Up to 50 cm / 20″ | Up to 40 cm / 16″ | 180 cm / 210 cm / 240 cm |
Important Cargo Securing Principle
To maintain maximum stabilizing efficiency, the void space should generally not exceed 35%–40% of the air bag’s flat width.
For oversized gaps, heavy cargo, or special loading configurations, please contact Tensipack for technical recommendations.
Kraft Paper Dunnage Air Bag Applications

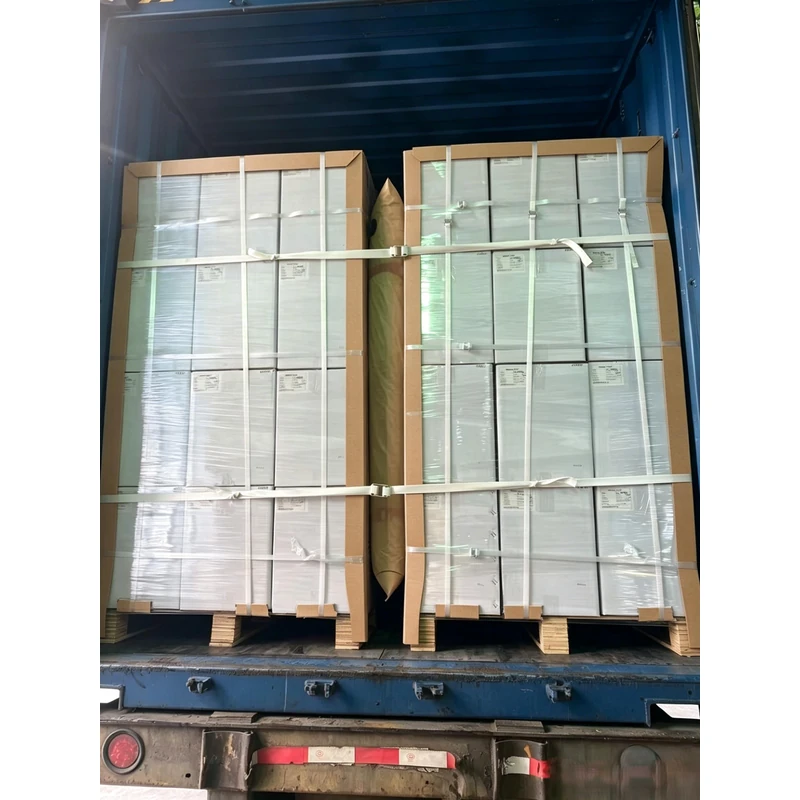

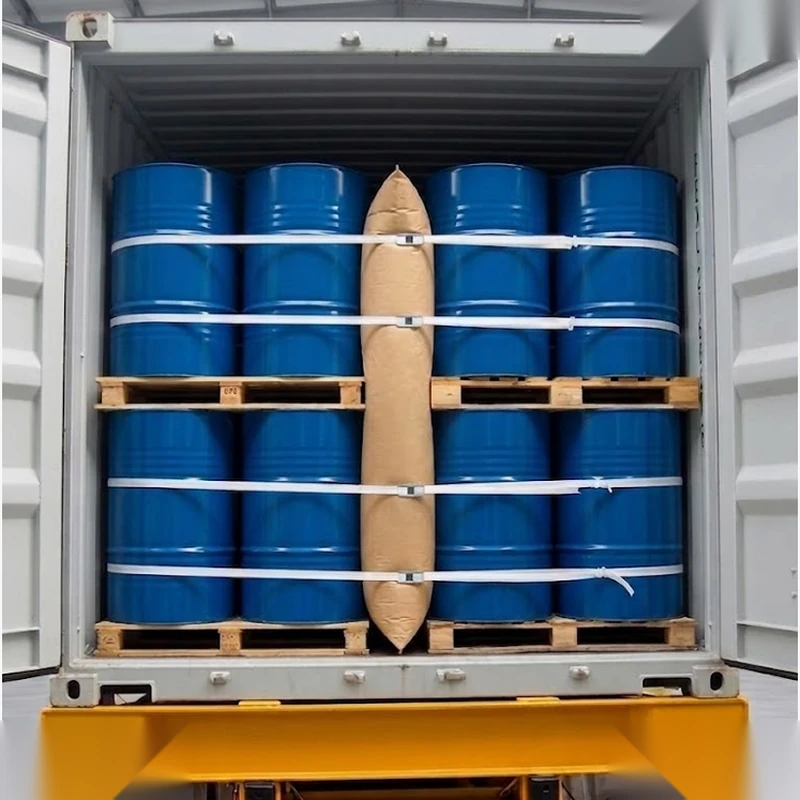

- Container Shipping
Stabilizing palletized cargo, cartons, drums, and industrial products during ocean transportation.
- Truck Transportation
Reducing cargo movement caused by vibration, braking, and road conditions.
- Rail Freight
Providing additional load support for long-distance railway transportation.
- Paper Rolls & Printing Materials
Preventing heavy rolls from shifting and reducing impact damage during transit.
- Machinery & Industrial Cargo
Supporting irregular and heavy cargo inside containers and trailers.

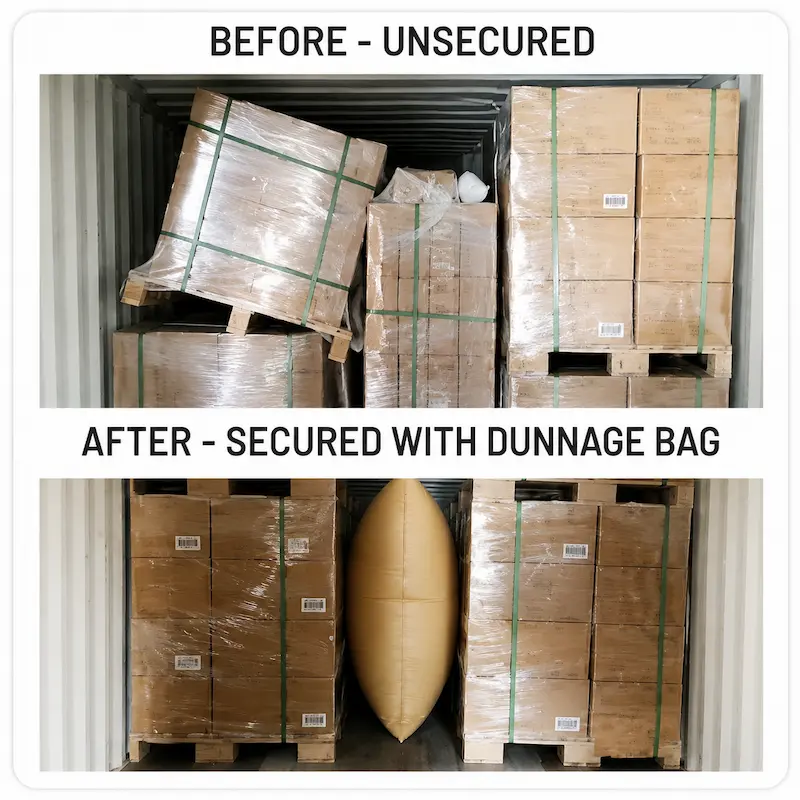

How It Works
- Place the deflated air bag into the void space between cargo units.

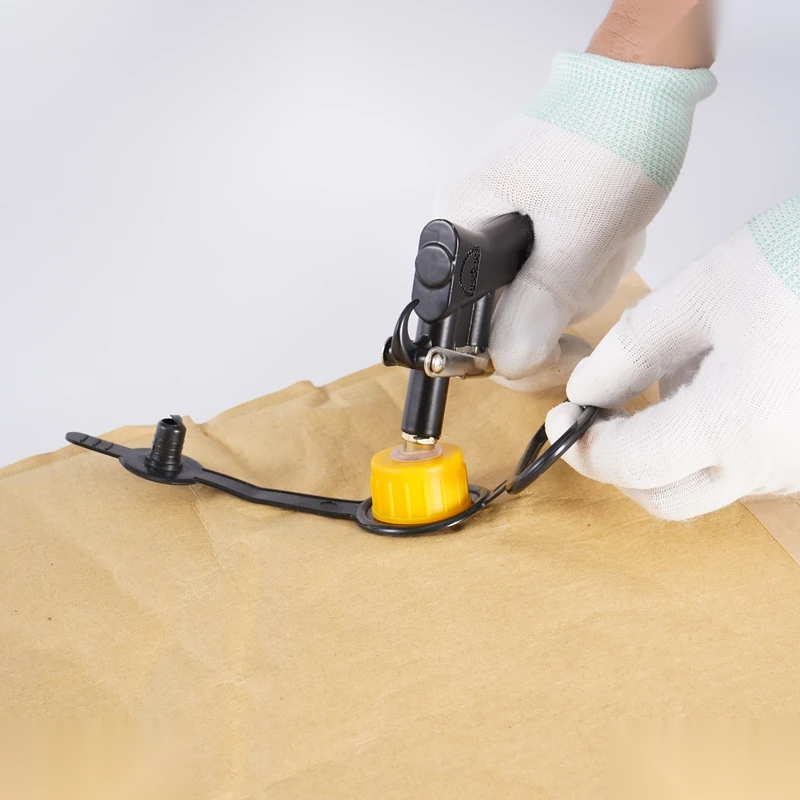

- Inflate the bag using compressed air through the valve system.
- The bag expands and conforms to the cargo surfaces.
- The resulting pressure locks cargo in place.
- The air cushion absorbs vibration, impact, and transportation forces throughout transit.
Quality Assurance & Safety Testing
To ensure reliable performance during long-distance transportation, Tensipack Kraft Paper Dunnage Air Bags are manufactured under strict quality control procedures.
All products are designed with a 3:1 safety factor, ensuring reliable performance when operated within the recommended working pressure range.
Quality verification includes:
• Material Inspection
Inspection of kraft paper layers, PE inner bladder, and valve components before production.

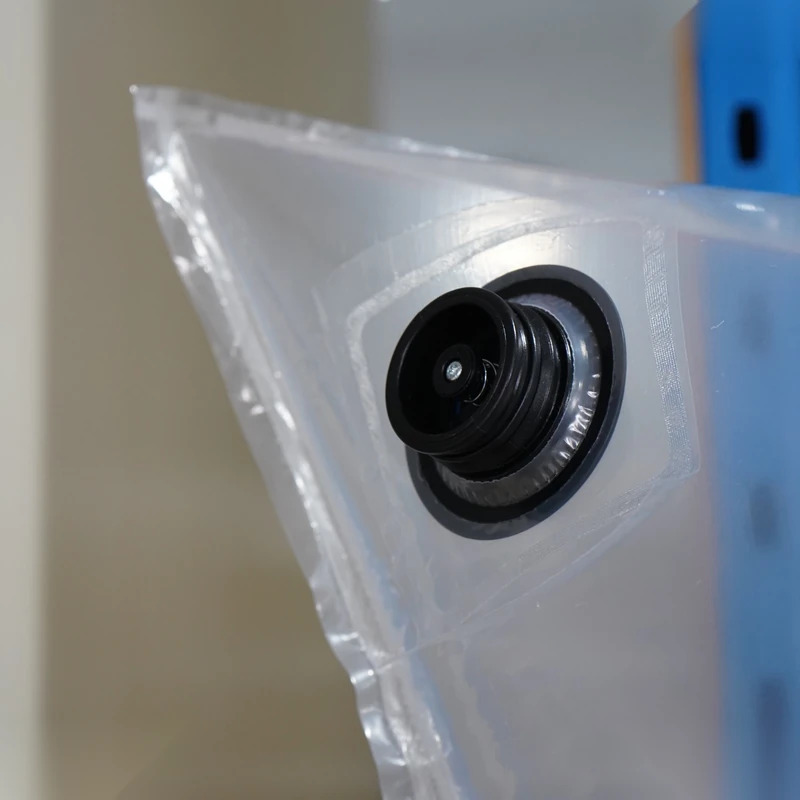

• Valve Inspection
Checking sealing performance and connection reliability.
• Air Retention Testing
Monitoring pressure stability to verify long-term inflation performance.
• Leakage Testing
Ensuring reliable sealing performance during transportation.

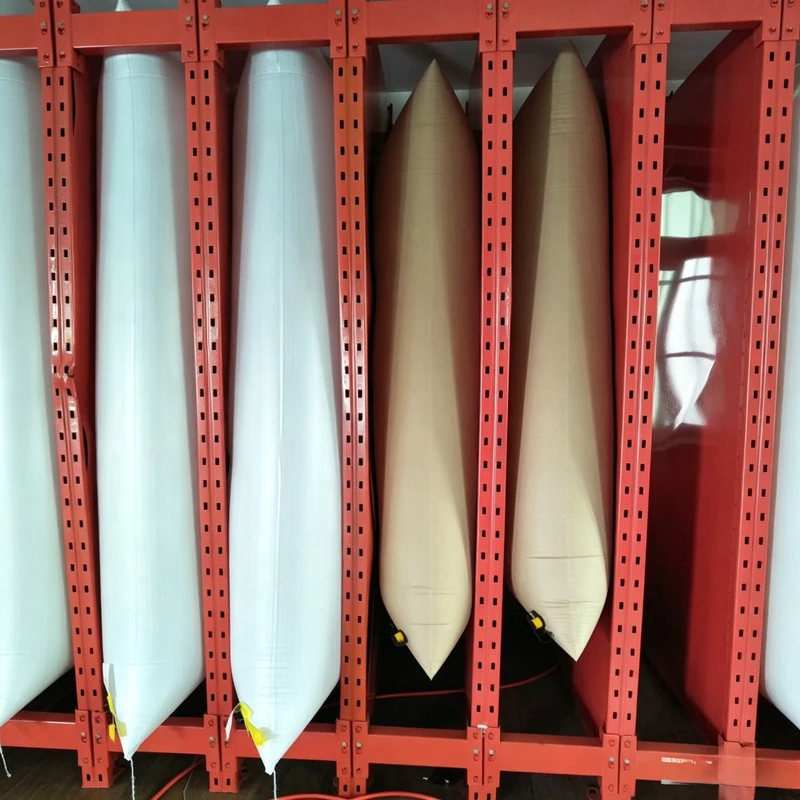

• Burst Pressure Verification
Routine testing to confirm structural strength and compliance with internal safety standards.
• Finished Product Inspection
Final inspection before shipment to ensure consistent product quality.
Technical data sheets (TDS), pressure test reports, and material specifications are available upon request.
Get A Free Dunnage Air Bag Quote
Request samples, specifications, and pricing within 24 hours.
