Heavy Duty Composite Strapping for Cargo Securing
High-performance composite strapping designed for securing heavy cargo in international transport.
Made from high-tenacity polyester fibers with polymer coating, it ensures load stability under dynamic conditions.
- Safer alternative to steel strapping
- Designed for container and export cargo
- Suitable for manual tensioning systems
The Hidden Risks of Improper Cargo Securing
During transport, cargo is exposed to vibration, shock, and load shifting.
Improper securing can lead to:
- Cargo movement and instability
- Product damage and financial loss
- Safety risks during handling
A reliable strapping system is essential to ensure safe and stable transportation.
What Is Composite Strapping
Composite strapping, also known as polyester cord strapping, is a high-strength synthetic strapping material made from parallel polyester yarns coated with polymer.
It is widely used as a safer and more flexible alternative to steel strapping in cargo securing applications.
Engineered for System Strength and Load Stability
The performance of composite strapping is defined not only by strap strength, but by the complete system strength:
- Strap tensile strength
- Buckle joint efficiency
- Tension retention under load
The system maintains load stability under dynamic transport conditions such as vibration, impact, and load shifting.
Key Features
- High tensile strength for heavy-duty cargo
- Excellent shock absorption
- Retensionable for load settling
- Weather-resistant and non-corrosive
- Soft surface for cargo protection
- Safe handling with no rebound risk
Why Choose Composite Strapping Over Steel
Compared to steel strapping:
- No snapping or rebound risk
- No corrosion or rust
- Better shock absorption
- Safer handling without sharp edges
- Lower total cost in long-distance transport
When to Use Composite Strapping
Recommended when:
- Cargo is exposed to dynamic forces
- Load shifting is expected
- Steel strapping is too rigid or unsafe
- Surface protection is required
Not recommended for fully automatic packaging lines where PET strapping is more suitable.
Typical Applications
- Container cargo securing
- Heavy machinery and project cargo
- Steel coils, pipes, and metal products
- Timber and construction materials
- Export shipments

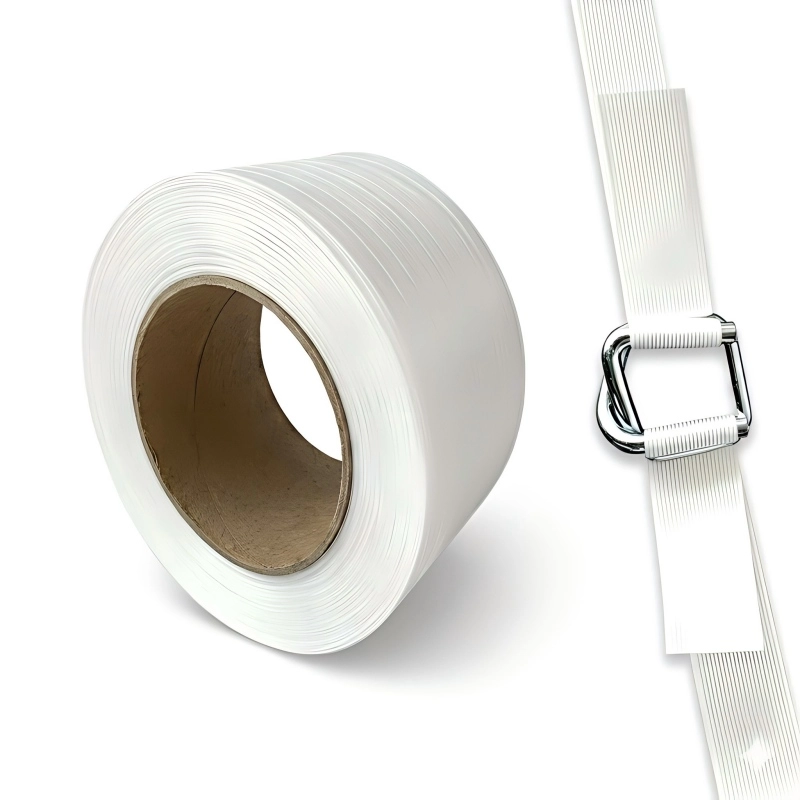

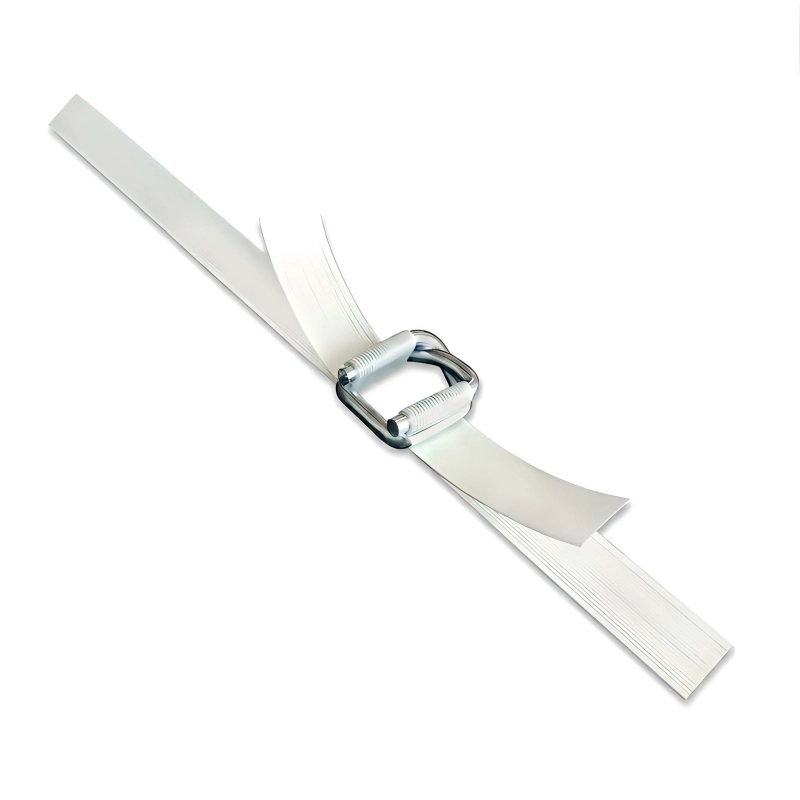

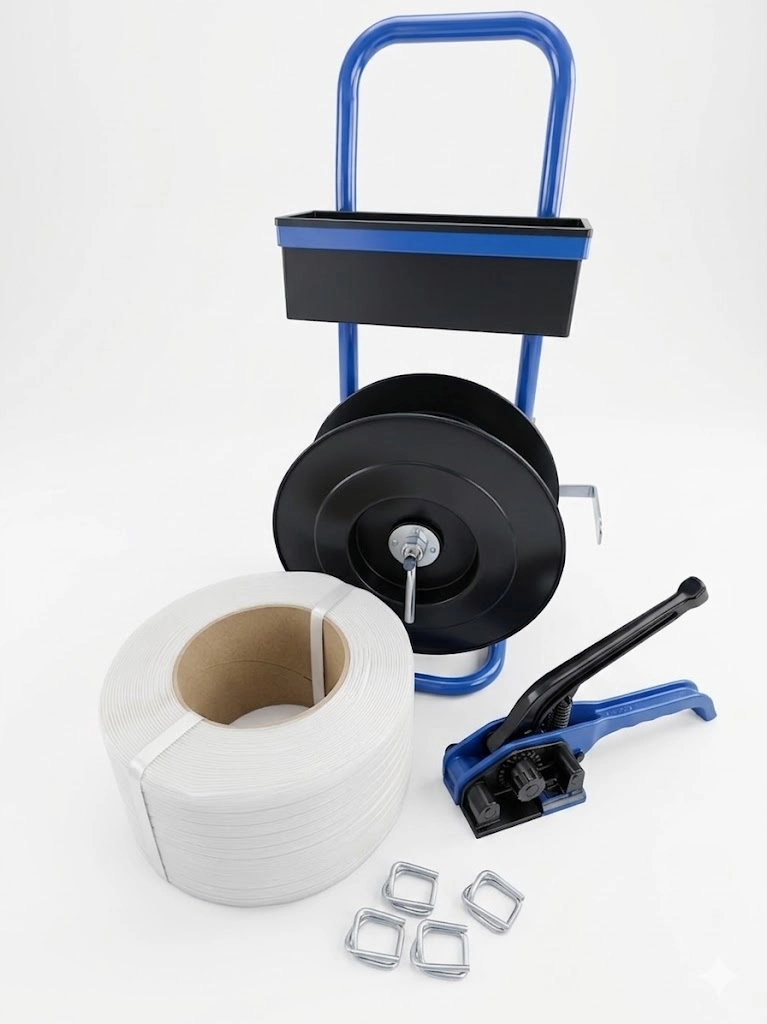

Compatible Securing System
Composite strapping is used together with:
- Wire buckles (friction locking system)
- Manual or pneumatic tensioners
Technical Specifications of Composite Strapping
| Item Code | Width | Linear Strength | System Strength | Length / Coil | Coils / Box | Coils / Pallet | Recommended Buckle |
| TS-CS-40 | 13 mm | 200 daN | 320 daN | 1100 m | 2 | 60 / 90 | 13 mm (Ø 3.3 mm) |
| TS-CS-40L | 13 mm | 300 daN | 480 daN | 1100 m | 2 | 60 / 90 | 13 mm (Ø 3.3 mm) |
| TS-CS-50L | 16 mm | 285 daN | 460 daN | 850 m | 2 | 60 / 90 | 16 mm (Ø 3.5 mm) |
| TS-CS-50 | 16 mm | 425 daN | 680 daN | 850 m | 2 | 60 / 90 | 16 mm (Ø 3.5 mm) |
| TS-CS-60 | 19 mm | 475 daN | 760 daN | 600 m | 2 | 60 / 90 | 19 mm (Ø 4.0 mm) |
| TS-CS-65 | 19 mm | 625 daN | 1000 daN | 500 m | 2 | 60 / 90 | 19 mm (Ø 4.3 mm) |
| TS-CS-85 | 25 mm | 785 daN | 1260 daN | 500 m | 2 | 60 / 90 | 25 mm (Ø 5.0 mm) |
| TS-CS-86 | 25 mm | 925 daN | 1490 daN | 450 m | 2 | 60 / 90 | 25 mm (Ø 6.0 mm) |
| TS-CS-105 | 32 mm | 1500 daN | 2400 daN | 300 m | 2 | 60 / 90 | 32 mm (Ø 7.0 mm) |
Understanding System Strength
System strength refers to the combined performance of the strapping and buckle.
It represents the actual securing capacity under real load conditions.
How to Choose the Right Specification
- Light loads → 13–16 mm
- Medium loads → 16–19 mm
- Heavy cargo → 19–25 mm
- Extreme loads → 25–32 mm
For container transport, 19 mm and above is typically recommended.
Packaging, MOQ & Delivery
We support flexible order quantities, including trial orders.
- MOQ:Trial orders supported
- Samples:Ready in 2–3 days
- Lead Time:10–15 days for standard orders
- Response Time:Within 24 hours
Get the Right Strapping Solution for Your Cargo
Tell us your cargo type, weight, and transport conditions.
We will recommend the most suitable strapping system within 24 hours.
Need Help Selecting the Right Specification?
Not sure which size fits your cargo?
Tell us your application — we will recommend the most suitable solution.
